Time Well View

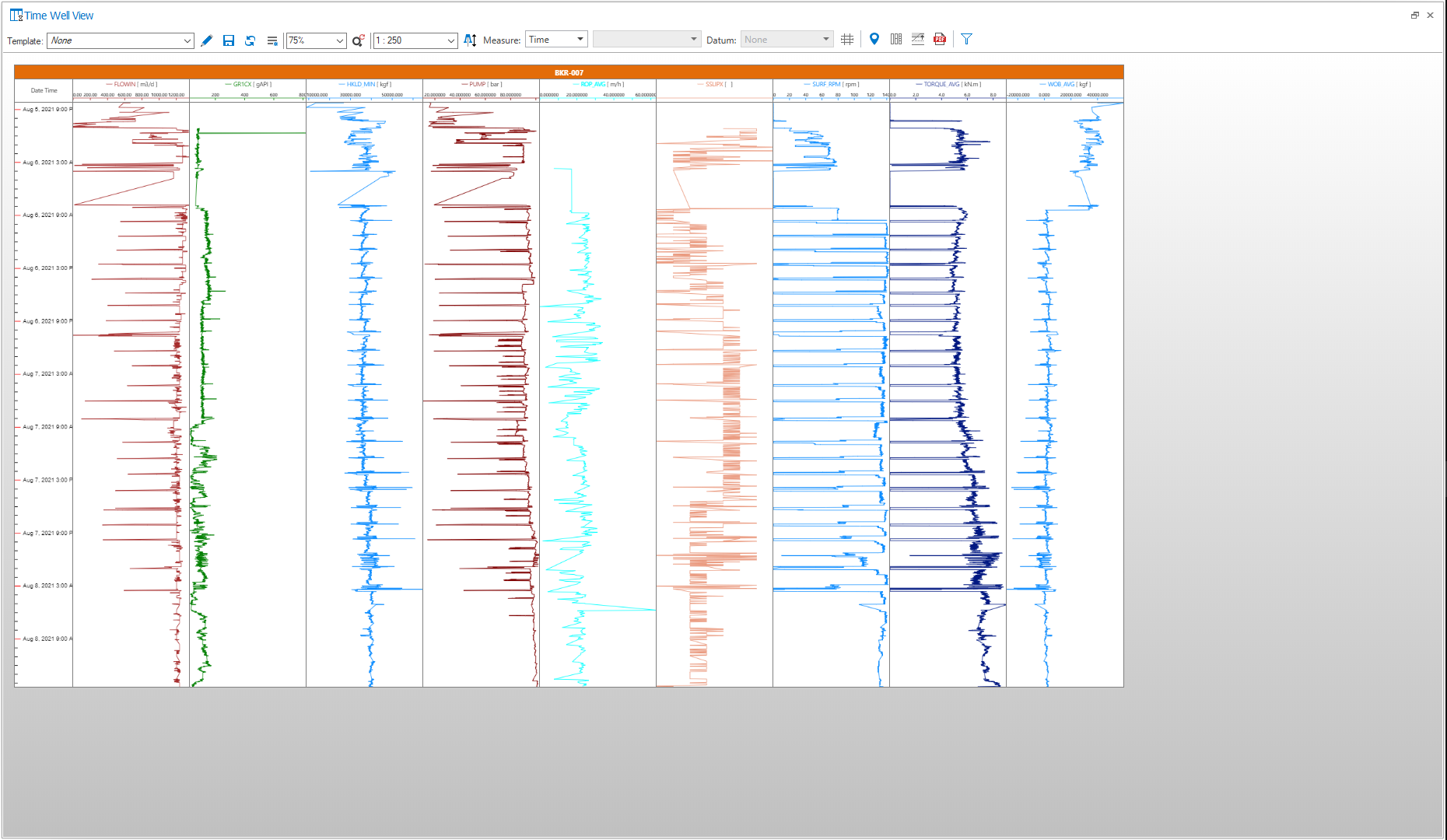

The Time Well View displays well logs based on time only. The view plots continuous logs and discrete logs and can visualize well events. You can open the view via the Views button in the top-right corner of the application. You can visualize each well, log, well event, and marker of interest by checking its corresponding box in the JewelExplorer. You can also select a template from the drop-down list for visualizing the data.

Time Well View toolbar

The toolbar at the top of the Well View can be used to change the projection, apply datum and filtering, change the vertical scale and access the Template Manager ( ).

Template   Select a template for the logs to be displayed from the drop-down list. You can also select None if you want to create your own template using the template editor.

You may use the Template Editor to control the tracks, log data, colors, fills, line settings and other display considerations. To open the editor right-click anywhere in the view and choose the Edit Template... option from the context menu or click directly on the icon to open the Template editor.

  Save Depending on the active template, you can choose to save the view to a new template or update the active template. If you click the save button while one of the pre-defined templates is active, your only option is to create a new template (pre-defined template may not be overwritten), and you are prompted to provide a name for the new template. If you click the save button while a custom template is active, you can choose to create a new template or update the active template. Templates with unsaved changes are indicated by the template name being italicized.

  Reapply  The reapply option 'resets' the view with the selected template. For example, if you have applied the template to the Time Well View and made some changes, such as visualizing additional logs, you can click the reapply button to reset the view back to the original view, which will remove the additional logs you had visualized.

  Template Manager  Opens the Template Manager from which you can rename, import, export and delete templates.

  Zoom Displays the current zoom level of the Time Well View. Select from a number of predefined zoom levels or press Ctrl and scroll the mouse wheel to zoom to a custom level. The reset button allows you to return the value to 100% after the zoom level has been changed.

Scale  Controls the vertical scale of the view. Standard scale available are 1: 100, 250, 500, 1000, 2500, 5000, 10000. You can also manually enter a scale.

  Fit wells   Scales the view such that the full depth of every displayed well becomes visible without having to scroll vertically.

Measure  Controls the projection of the view. By default, this is set to 'Time' for this view.

Projection  Select the projection, if applicable.

Datum  Select the marker you want to datum on. You can set datuming options using the Datum form, opened by clicking the button adjacent to the drop-down list. As an alternative to setting a datum using the drop-down list, you can also right-click the marker of interest and select Set as Primary Datum.

  Edit Datum  Opens the Datum form where you can specify the depth, active marker set, primary, secondary, or tertiary markers, on which to datum. See Datuming in a Well View for more on this.

Property Information Activates the Probe tool for use in the Time Well View. With the Probe tool active, a small dialog box containing various information appears when an object in the Time Well View is hovered over.

Marker Validation Form   Opens the Marker Validation form where you can validate your markers against a selected stratigraphic model.

Indicate invalid markers in Well view   All invalid markers (i.e. markers that are not picked according to the stratigraphic model) will be listed in the table on the form, and can subsequently be marked in the Well View by clicking the next toolbar icon .

 Print to PDF Opens the print dialog. You can select any print option listed in the Select Printer field.

To view the well logs, first, you must import the well logs to the solution. The imported logs can be found in the JewelExplorer in the Time Indexed Log folder, as well as under each of the wellbore items in the Wells folder.

Filtering You can filter the data in a Time Well View by date. Date filtering allows you to view the data for a specific date and time period.

For information on the well logs based on depth, see Well View.
